How to replace the speedometer display of Audi A4 B6 and A4 B7

Audi A4 B6 - B7 instrument panel LCD screen

Audi A4 B7 - B6 speedometers LCD screen repair

Audi A4 B6, S4 B6, A4 B7, S4 B7 and RS4 B7 instrument clusters repair

Here’s how to repair A4 B6, S4 B6, A4 B7, S4 B7 and RS4 B7 dashboards with not working display

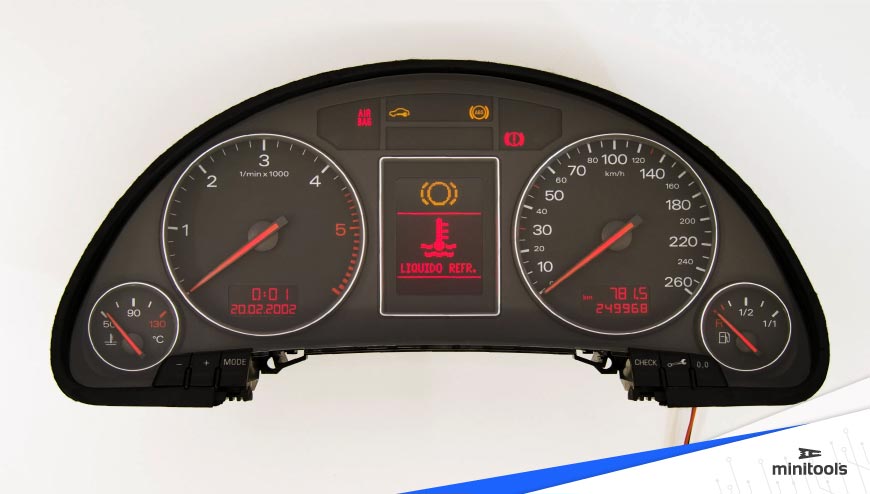

On Audi A4 B6 and Audi A4 B7 instrument clusters, and on sport versions S4 and RS4 as well, the middle screen placed between the rev counter and the speedometer, also called DIS (driver information system) or FIS (from german fahrer informations system) has essential functions, showing various information, such as fuel range, fuel economy, average speed and more.

A common issue on Audi A4 B6, S4 B6, A4 B7, S4 B7, RS4 B7 instrument panels is the malfunctioning of the just mentioned display, which could be fading, have “dead pixels” on it, being difficult, if not impossible, to read.

So, what to do if the middle display of Audi A4 B6 instrument cluster is unreadable or Audi A4 B7 instrument panel multifunction LCD screen is not working?

The solution that gets usually offered is Audi A4 instrument cluster replacement, which could be quite expensive. We analysed Audi A4 instrument panel problem, we found the cause and we can offer an alternative, less expensive and easier solution: repairing the instrument cluster!

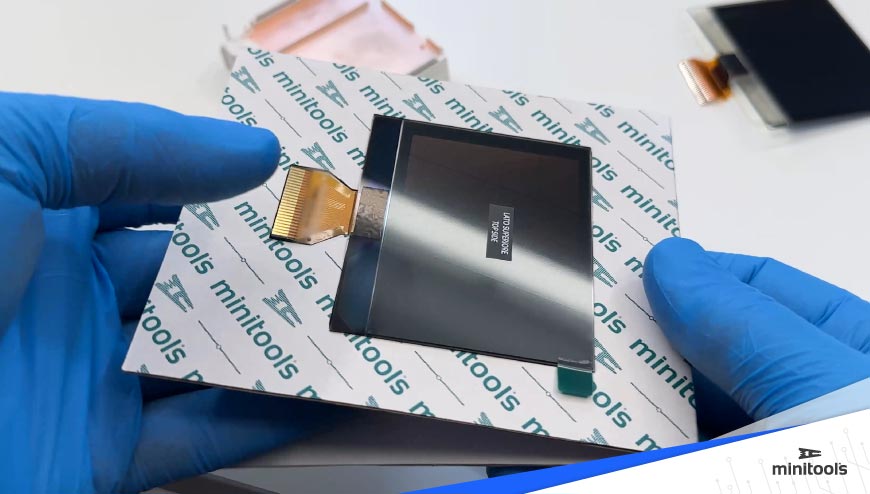

When Audi A4 dashboard display is not working properly, the cause it’s malfunction of the LCD itself, which can be simply replaced with our replacement code SEPDISP26, as shown in this video tutorial:
