SEPDISP21B

Modification for Mercedes SLK R171 display

WARNING: This process is recommended only to expert and qualified staff.

Before installing the new SEPDISP21B display, please read the following instructions carefully.
DO NOT SKIP ANY STEPS.

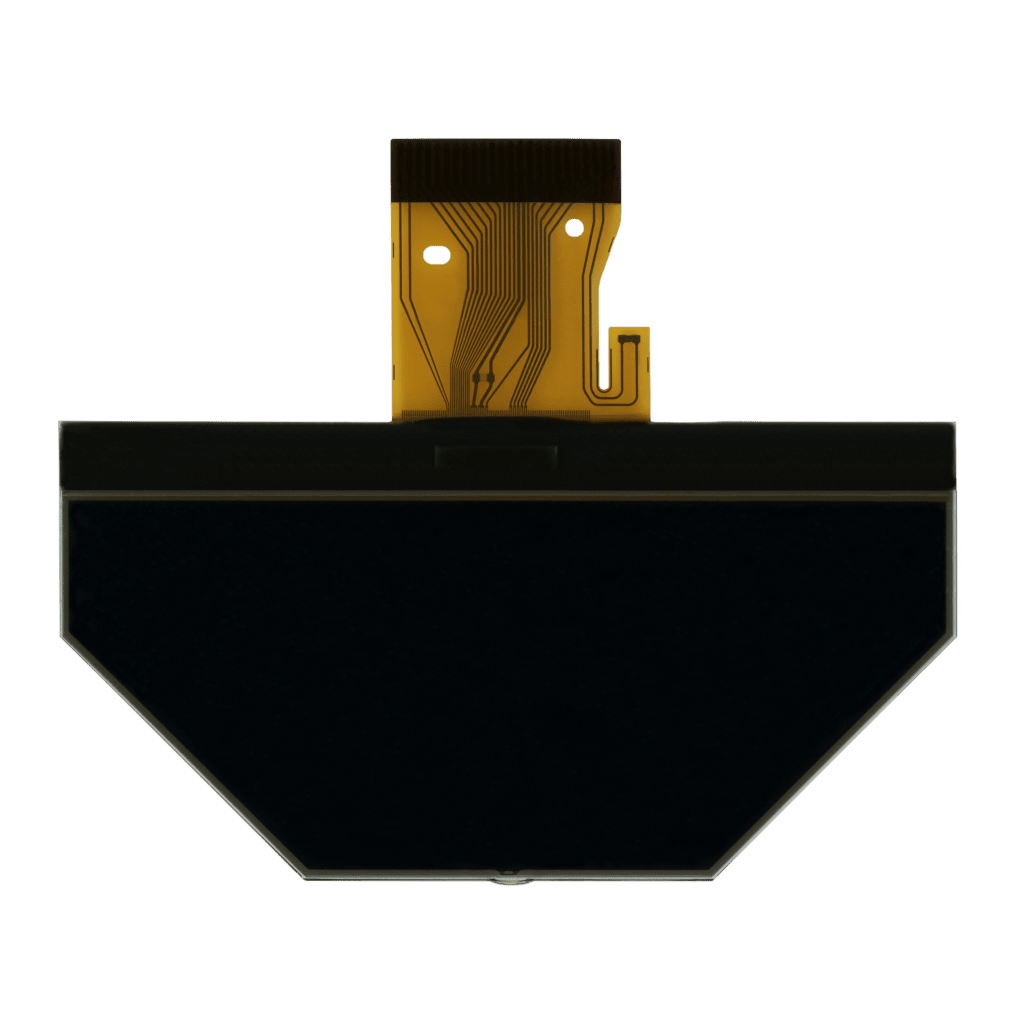

THE FOLLOWING MODIFICATION IS NECESSARY FOR THE CORRECT FUNCTIONING OF SEPDISP21B DISPLAY (pic. 1).

Replace the display in an ambient temperature of 25 °C

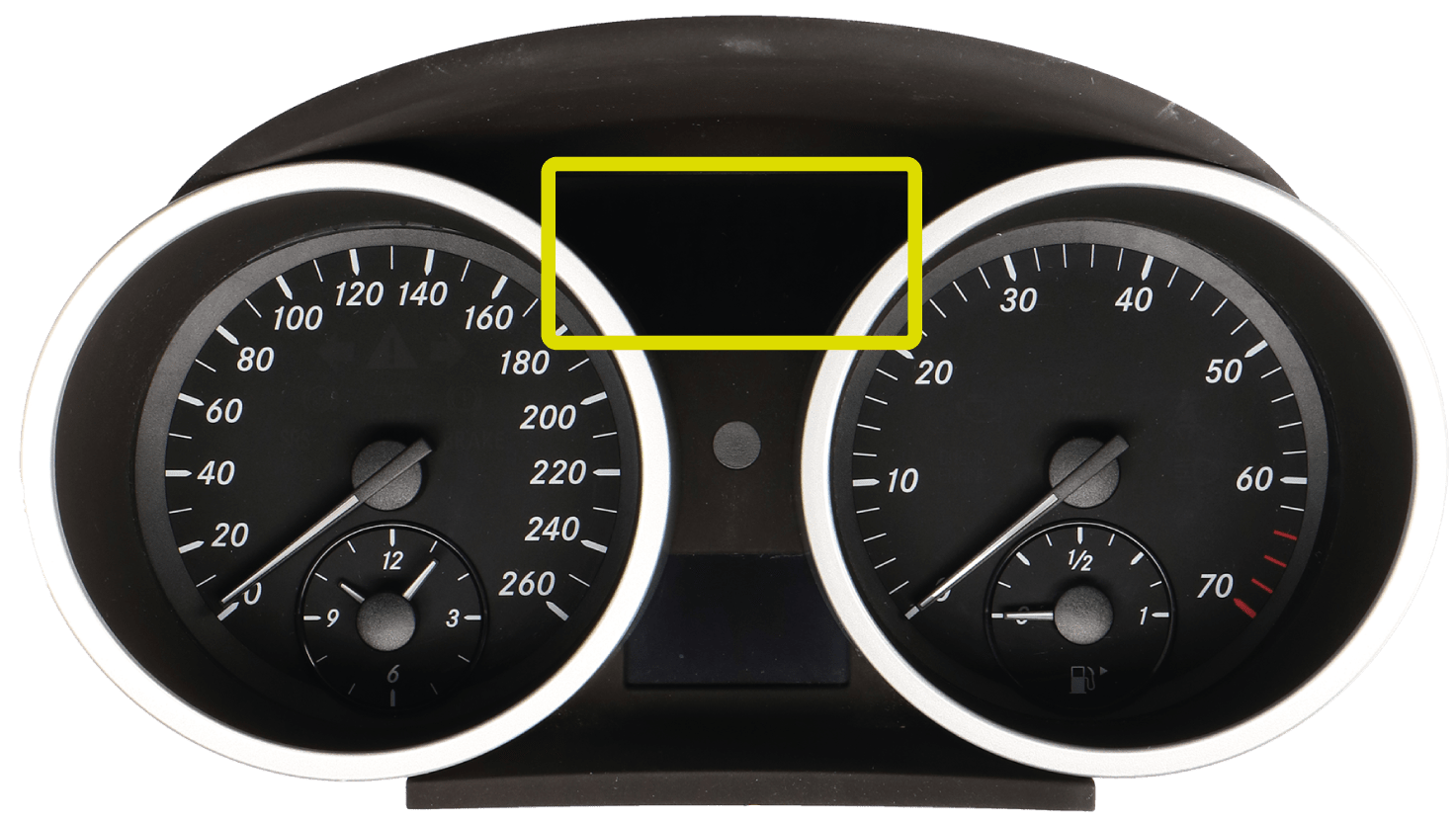

Collocation of the display SEPDISP21B on Mercedes SLK R171 instrument panels
Pic. 1

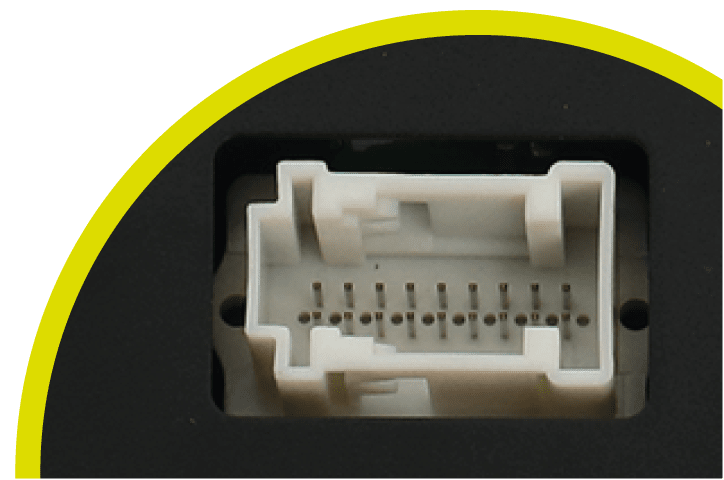

Mercedes SLK-Class R171 instrument cluster connector
Pic. 2

To adjust SEPDISP21B display voltage:

After replacing the LCD, switch on the cluster: white connector (pic. 2) pin no. 1 negative, pin no. 5 and pin no. 6 positive.

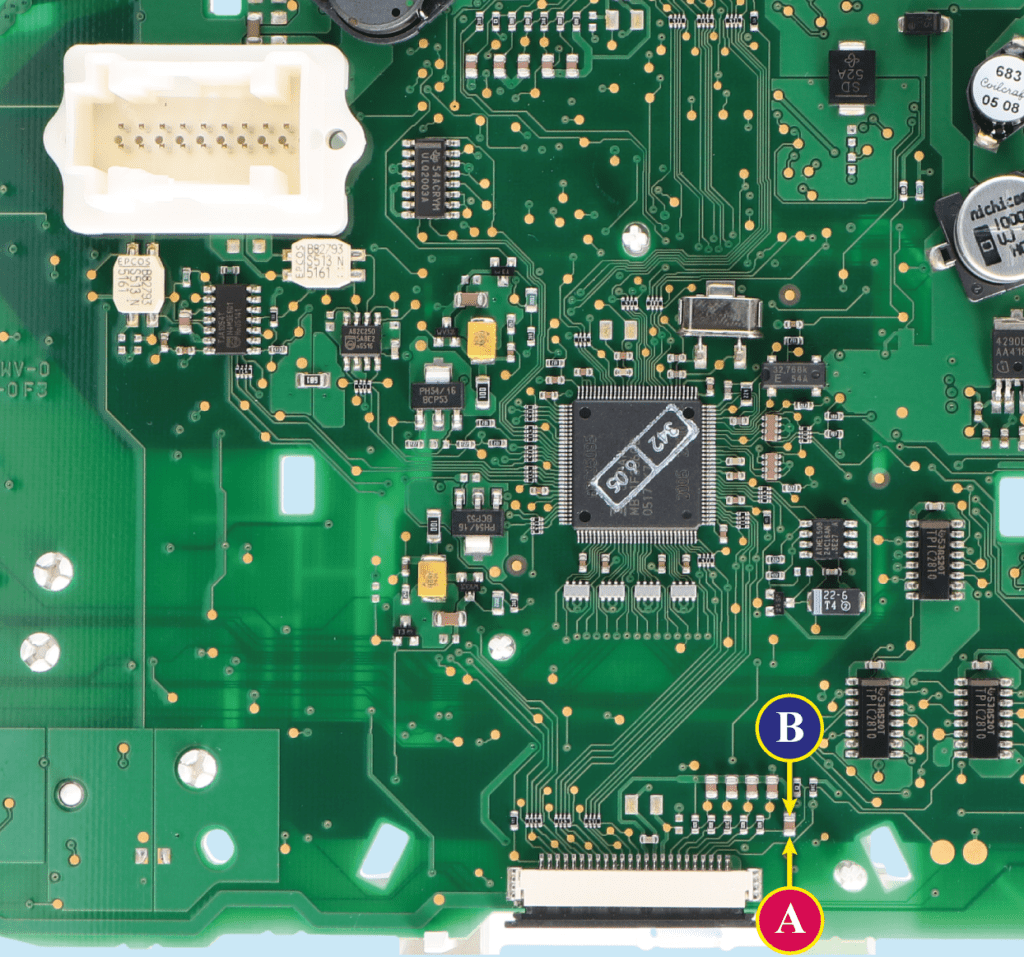

Measure the voltage between A and B points as in picture 3.
· If the voltage measured is between 11.98V and 12.02V, no modification is necessary;
· If the voltage detected is instead lower than 11.98V or higher than 12.02V, it is necessary to do the modification described in the
following paragraph “MODIFICA EEPROM”.

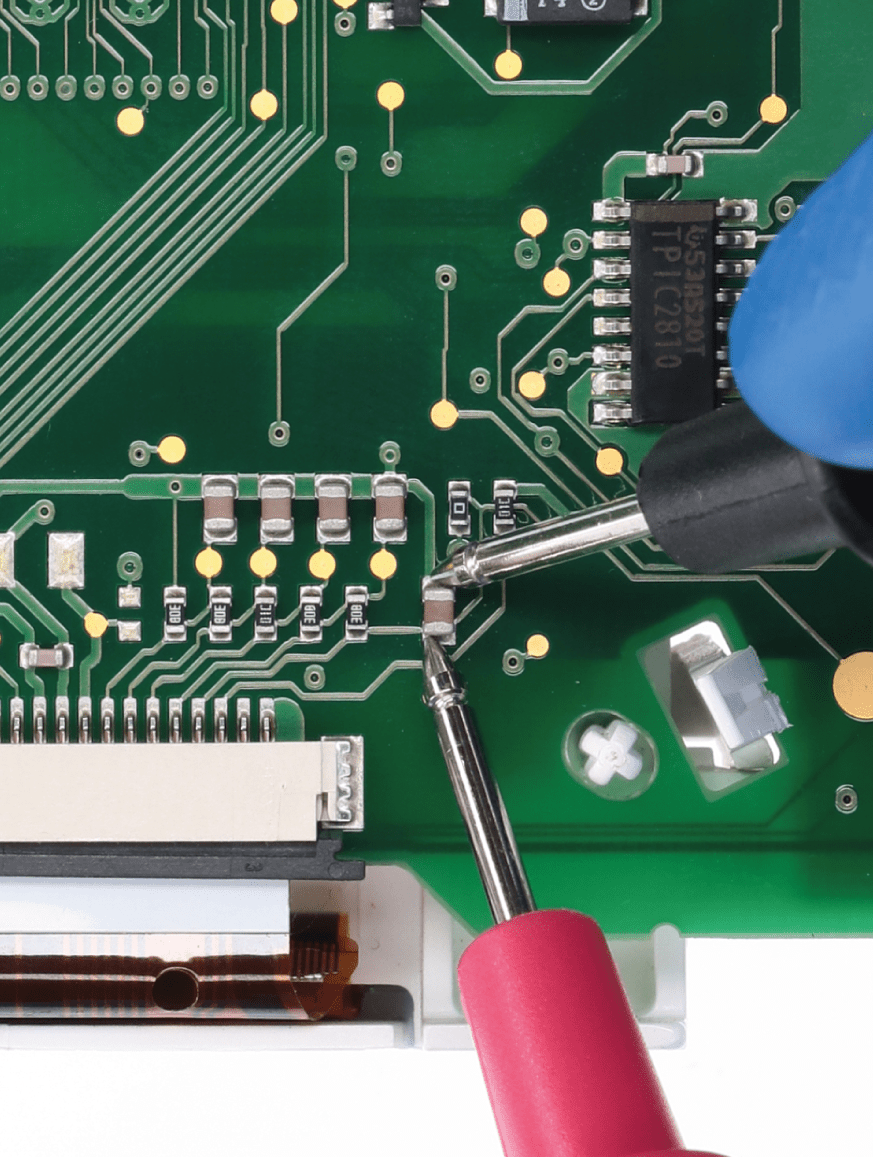

Measuring display voltage

Where to measure the voltage on Mercedes SLK R171 speedometers
.
How to measure the voltage on Mercedes-Benz SLK-Class R171 dashboards
Pic. 3

modifica eeprom

NOTE: For this modification it is necessary to use an EEPROM programmer.
We recommend our SEP-EECLIP.

First, set the programmer reading in 8 bit hexadecimal (HEX).

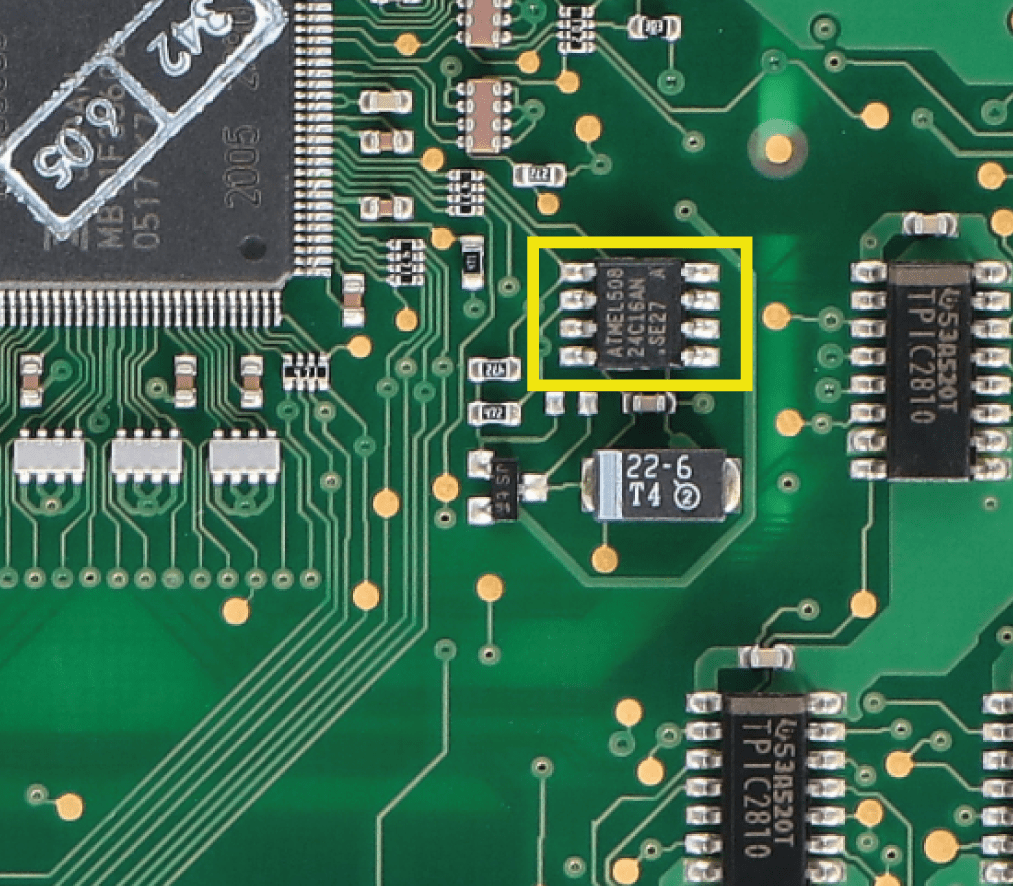

Desolder and make a backup of the 24C16 EEPROM (shown in picture 4)
To reach a voltage close to 12.00V act on 02D8 location

Please note that decreasing this location by 1 HEX unit, the variation will be + 0.016V, or vice versa.

NOTE: For the oflline version download PDF.

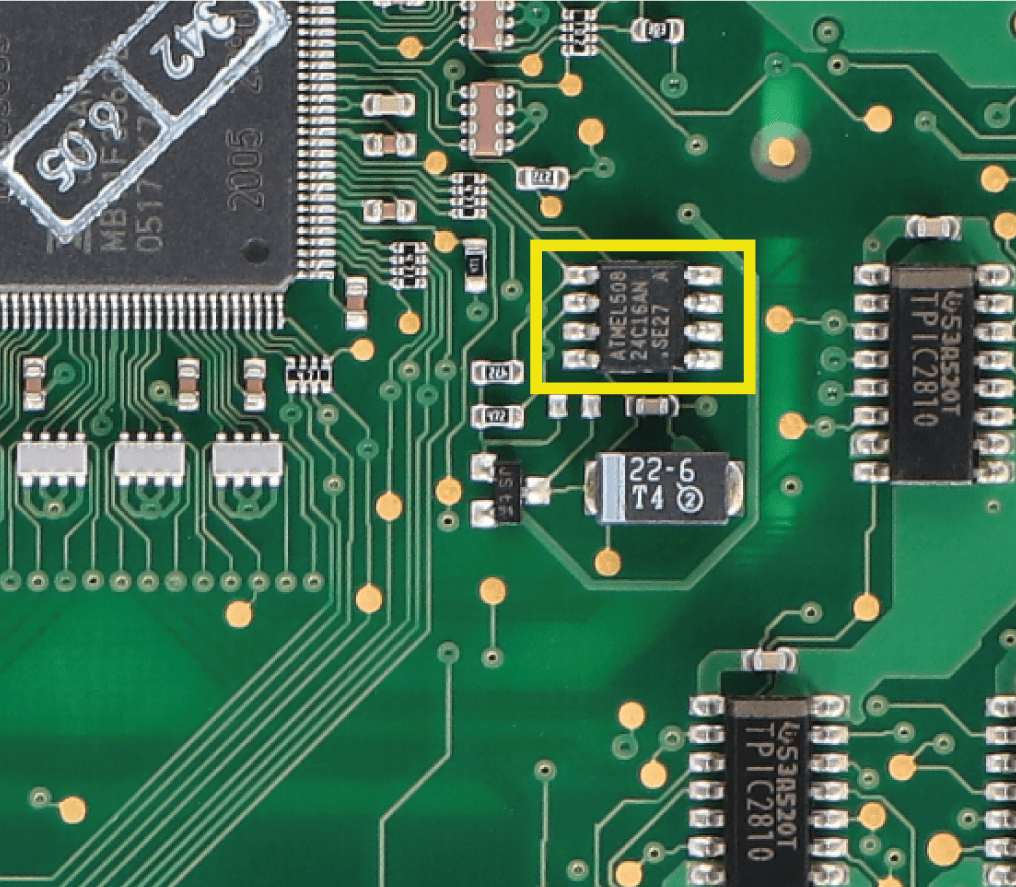

Collocation of the EEPROM 24C16 on Mercedes SLK R171 speedometers
Pic. 4

If not familiar with hexadecimal calculation, it is possibile to use the calculation tool in the box below, simply typing in the values.

Calcolo SEPDISP21B

CALCULATION OF THE NEW VALUE OF THE LOCATION

*How to identify 028D8 location value on the EEPROM programmer

Once these modifications have been done, measure again the voltage between A and B points and check that it actually is between 11.98V and 12.02V. If not, increase or decrease the location until the value is as close as possible to the right range.

SEPDISP30

Modification for Mercedes SLK R171 display

WARNING: This process is recommended only to expert and qualified staff.

Before installing the new SEPDISP30 display, please read carefully the following instructions.
DON’T SKIP ANY STEP.

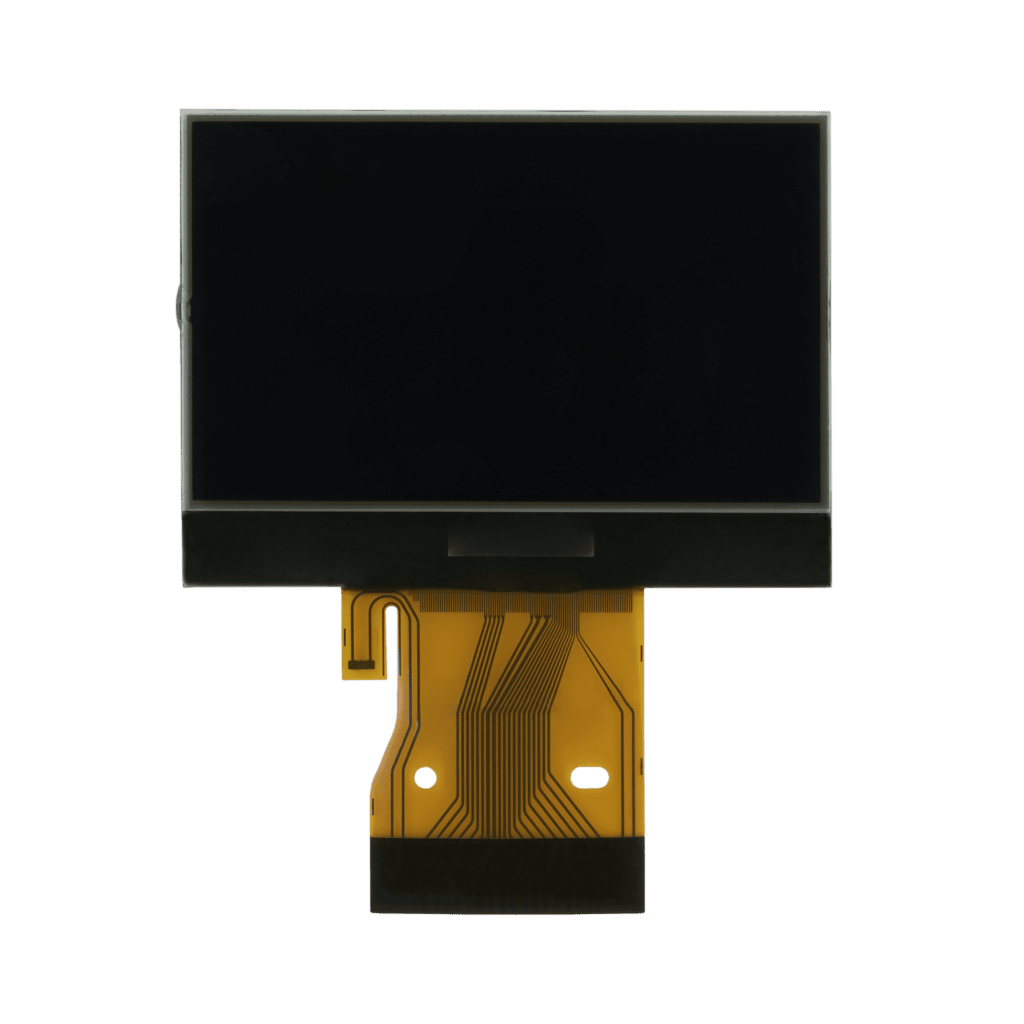

THE FOLLOWING MODIFICATION IS NECESSARY FOR THE CORRECT FUNCTIONING OF SEPDISP21B DISPLAY (pic. 1)

Replace the display in an ambient temperature of 25 °C.

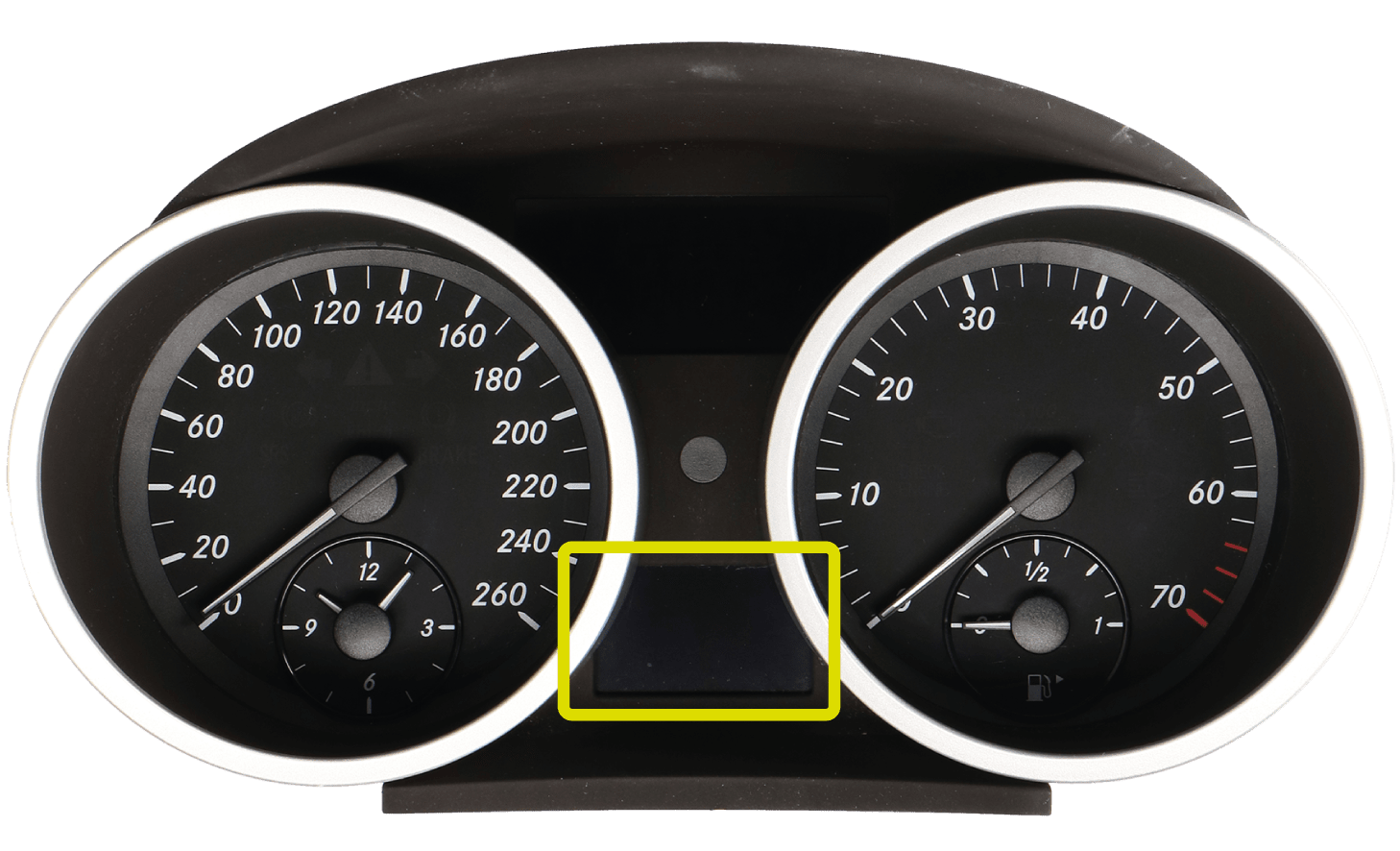

Collocation of the top display of Mercedes-Benz SLK-Class R171 instrument clusters
Pic. 1
Pic. 2

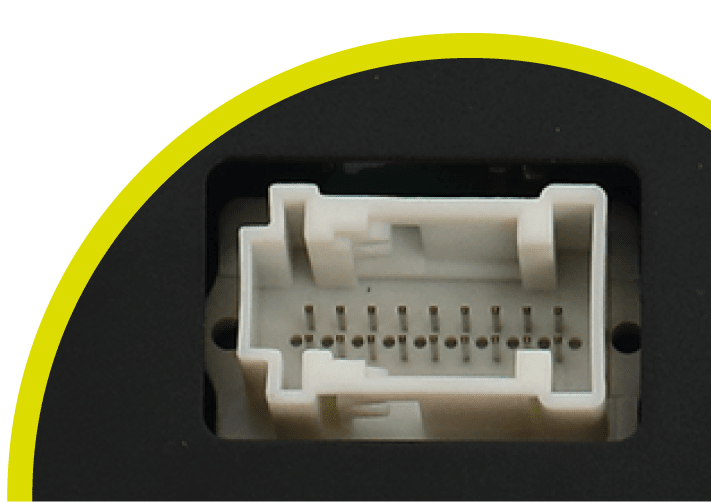

To adjust SEPDISP30 display voltage:

After replacing the LCD, switch on the cluster: white connector (pic. 2) pin no. 1 negative, pin no. 5 and pin no. 6 positive. Measure the voltage between A and B points as in picture 3.

• If the voltage measured is between 12.08V and 12.12V, no modification is necessary;
• If the voltage detected is instead lower than 12.08V or higher than 12.12V, it is necessary to do the modification described in the following paragraph “EEPROM MODIFICATION“.

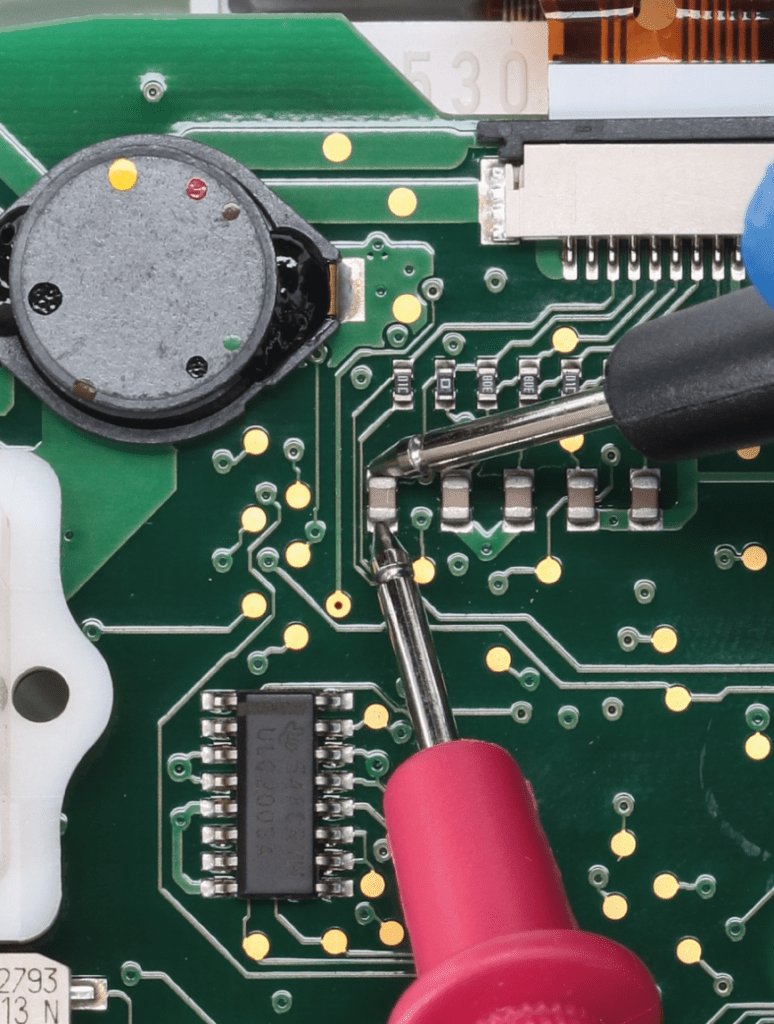

Measuring display voltage

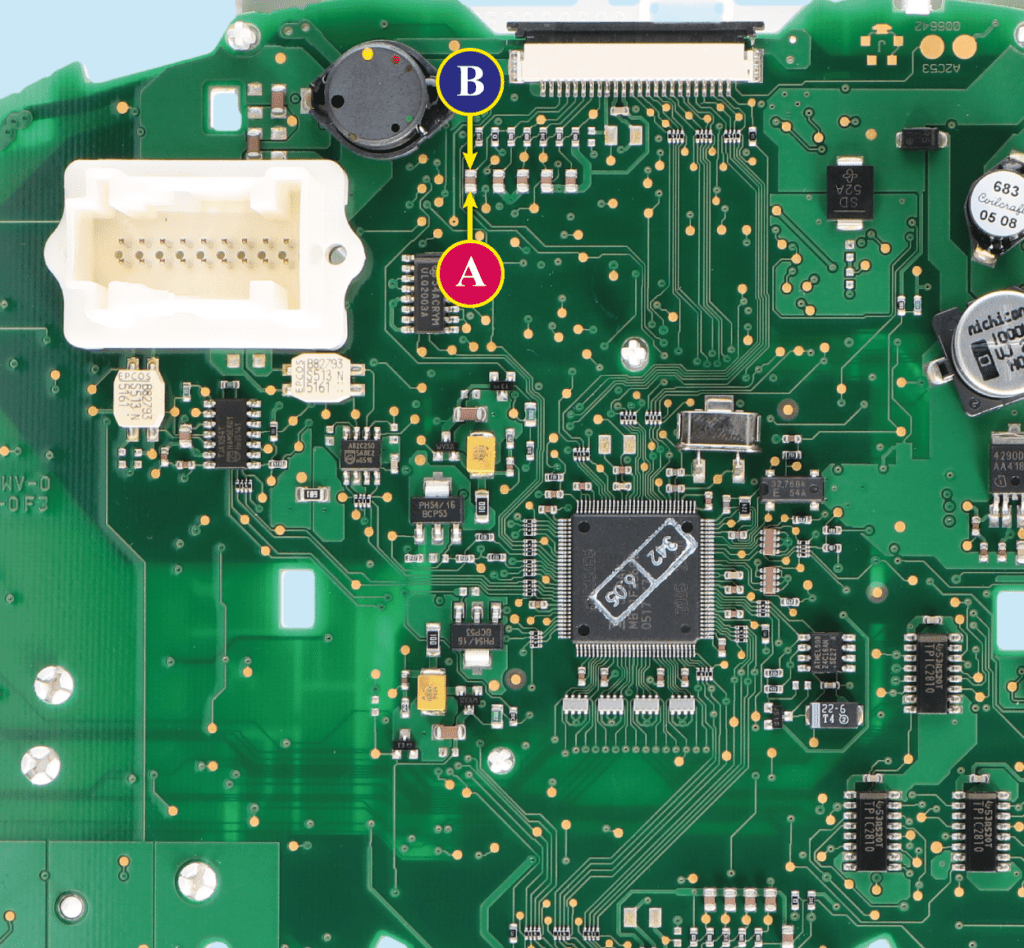

Where to measure the voltage on the PCB of Mercedes-Benz SLK-Class R171 speedometers
How to measure the voltage on the printed circuit board of Mercedes SLK R171 instrument panels
Pic. 3

EEPROM MODIFICATION

NOTE: For this modification it is necessary to use an
EEPROM programmer.
We recommend our SEP-EECLIP.

First, set the programmer reading in 8 bit hexadecimal (HEX);
Desolder and make a backup of the 24C16 EEPROM (shown in picture 4);
• To reach a voltage close to 12.1V act on 02B8 location.

Please note that decreasing this location by 1 HEX unit, the variation will be + 0.016V, or vice versa.

NOTE: For the oflline version download PDF.

Where to find the EEPROM 24C16 on the PCB of Mercedes SLK R171 speedometers
Pic. 4

If not familiar with hexadecimal calculation, it is possibile to use the calculation tool in the box below, simply typing in the values.

Calculation SEPDISP30

CALCULATION OF THE NEW VALUE OF THE LOCATION

*How to identify 02B8 location value on the EEPROM programmer

Once these modifications have been done, measure again the voltage between A and B points and check that it actually is between 12.08V and 12.12V. If not, increase or decrease the location until the value is as close as possible to the right range.
