Identify the displays for Porsche 911 996 and Porsche Boxster 986 instrument clusters:
Select the version for Porsche Boxster 986:

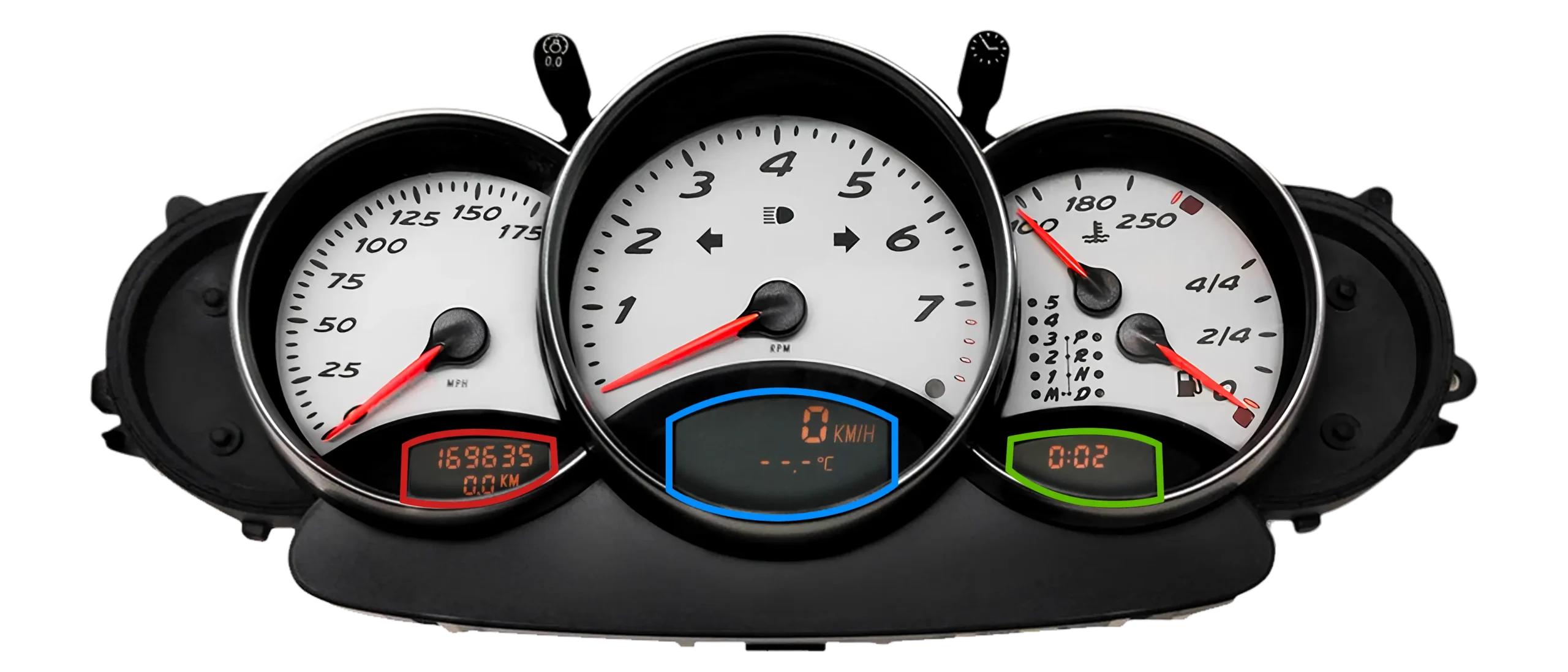

versions from 1996 to 2001

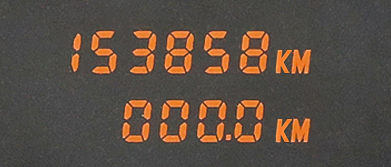

Segments displays (e.g.)
SEPDISP46A, SEPDISP46BV2, SEPDISP46B, SEPDISP46C, SEPDISPKIT-46A-B-C-V2, SEPDISPKIT-46A-B-C

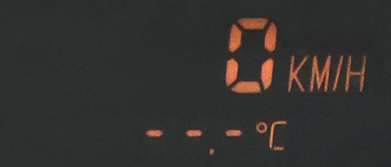

versions from 2000 to 2004
Segments display (e.g.)
SEPDISP88

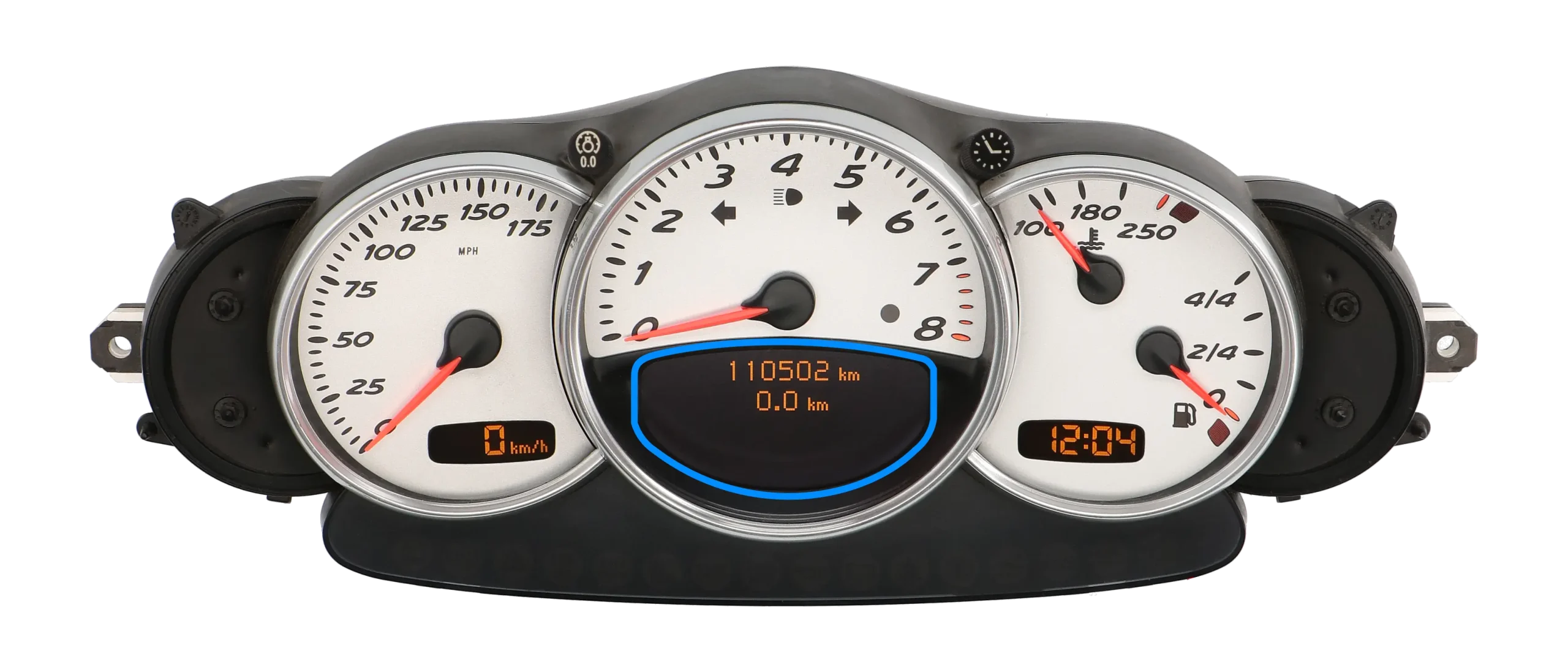

versions from 2001 to 2004

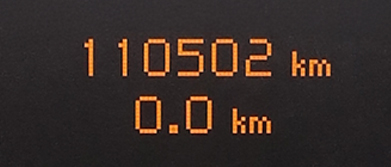

Dot-matrix display (e.g.)
SEPDISP87
Available displays for Porsche 911 996 instrument clusters

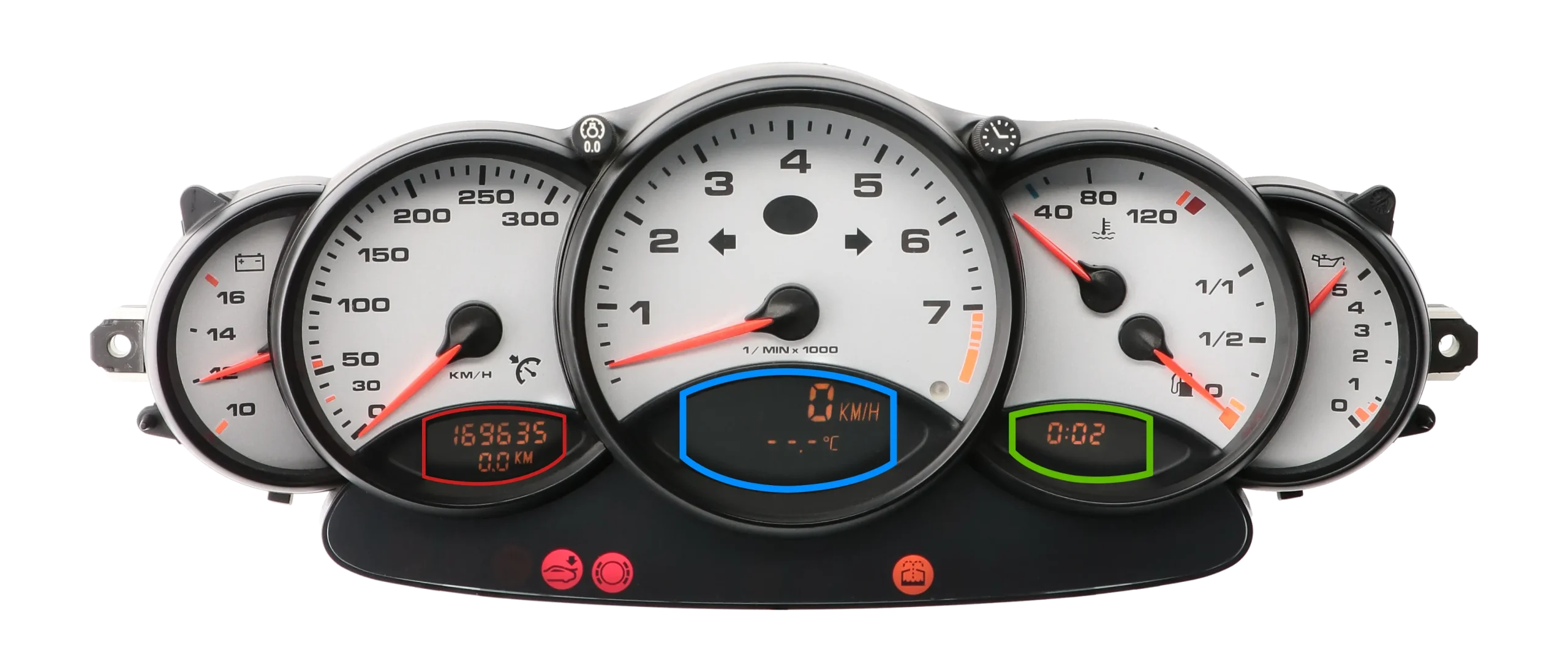

Versions from 1997 to 2002 (segments displays)
We recommend replacing all displays of the instrument panel, purchasing the kits, to avoid visualization differences between the new display and those not replaced.
Attention!
A good level of skill and soldering experience are required to replace the display.
| SINGLE DISPLAYS |
|---|
|
SEPDISP46A
Left-hand side display
|
|
SEPDISP46BV2
KMH Middle display
|
|
SEPDISP46B
MPH middle display
|
|
SEPDISP46C
Right-hand side display
|
| KIT |
|
SEPDISPKIT-46A-B-C-V2
KMH kit
|
|
SEPDISPKIT-46A-B-C
MPH kit
|

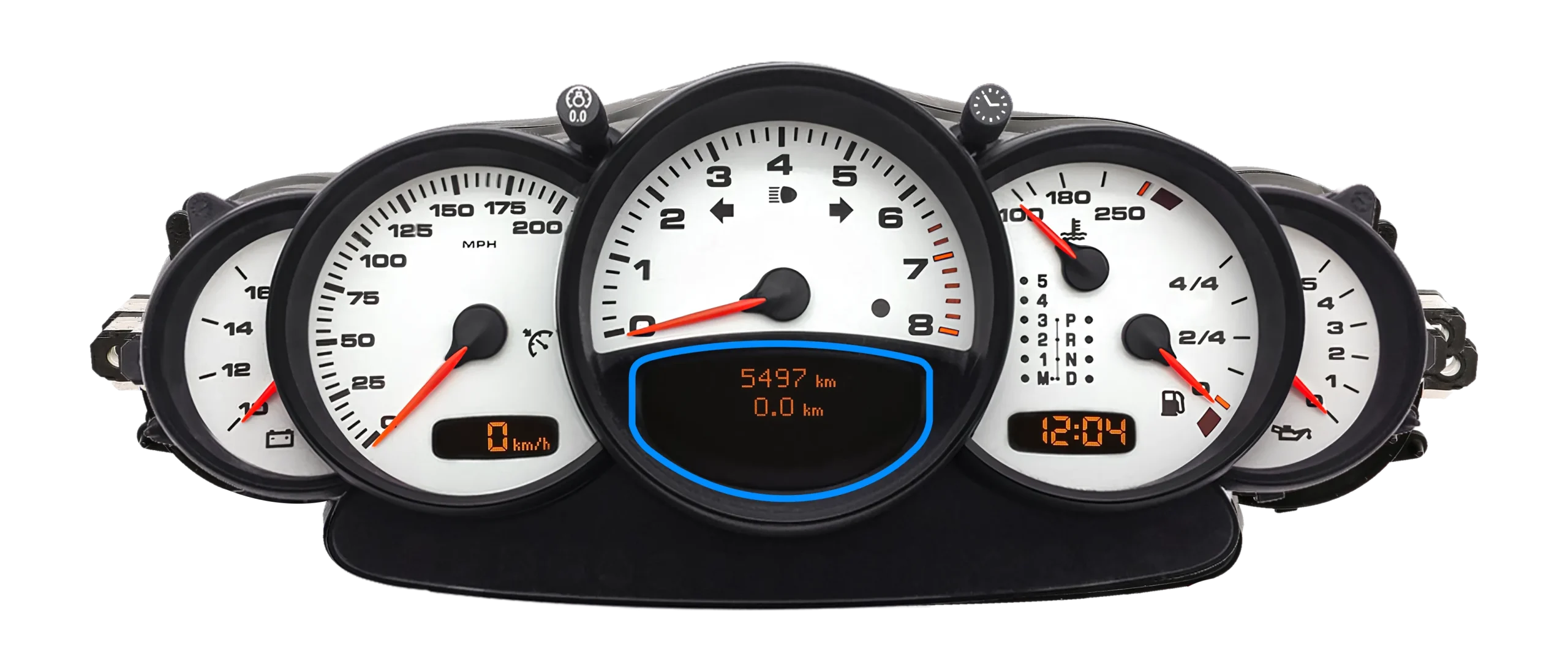

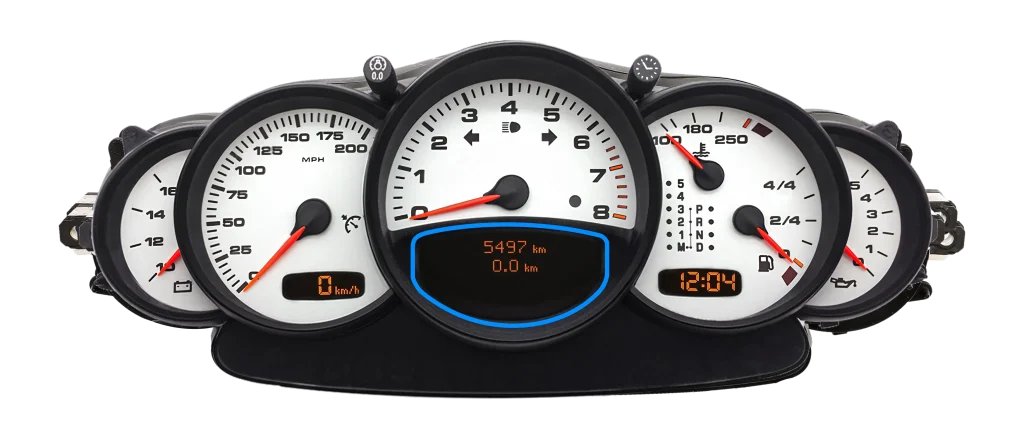

Versions from 2002 to 2006 (dot-matrix display)
Attention!
After replacing the display, you may need to optimise it by modifying the EEPROM parameters using a programmer
| SINGLE DISPLAY |
|---|
|
SEPDISP87
Middle display
|
Available displays for Porsche Boxster 986 instrument clusters

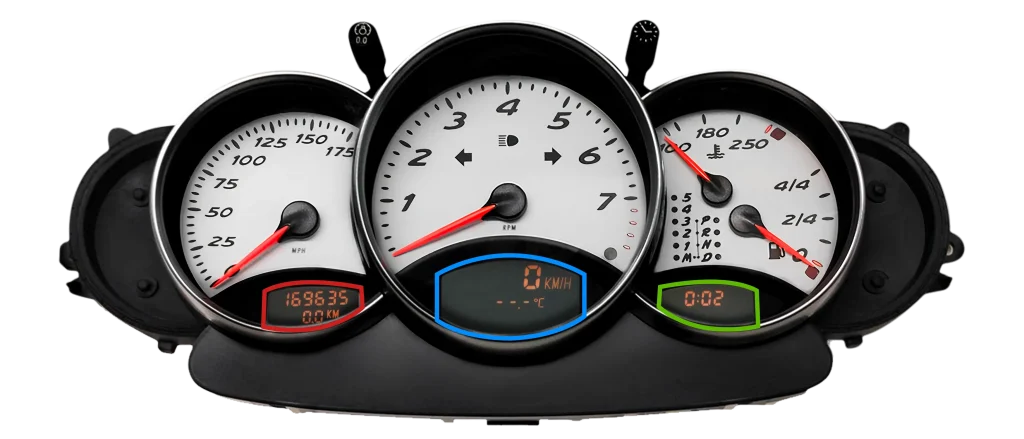

Versions from 1996 to 2001 (segments displays)
We recommend replacing all displays of the instrument panel, purchasing the kits, to avoid visualization differences between the new display and those not replaced.
Attention!
A good level of skill and soldering experience are required to replace the display.
| SINGLE DISPLAYS |
|---|
|
SEPDISP46A
Left-hand side display
|
|
SEPDISP46BV2
KMH Middle display
|
|
SEPDISP46B
MPH middle display
|
|
SEPDISP46C
Right-hand side display
|
| KIT |
|
SEPDISPKIT-46A-B-C-V2
KMH kit
|
|
SEPDISPKIT-46A-B-C
MPH kit
|

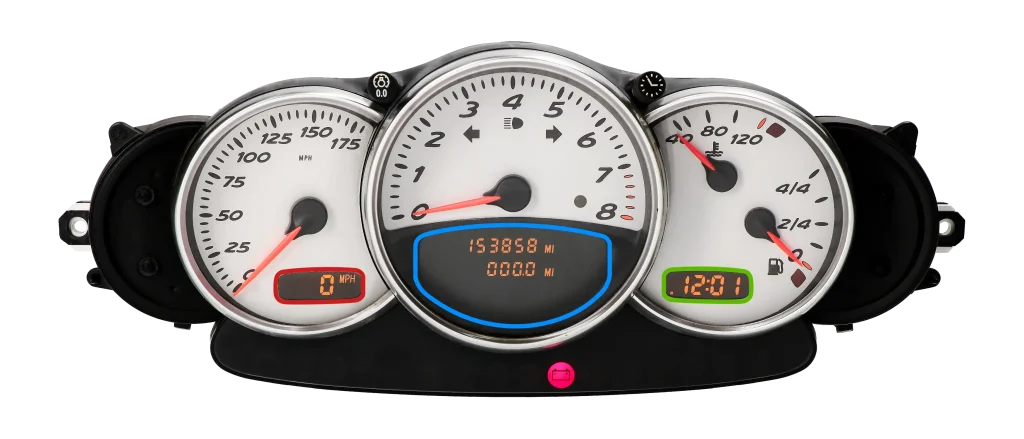

Versions from 2000 to 2004 (segments displays)
We recommend replacing both sides displays of the instrument cluster, purchasing the kit SEPDISPKIT-91DX-91SX, to avoid visualization differences between the new display and that not replaced.
| SINGLE DISPLAYS |
|---|
|
SEPDISP91SX
Left-hand side display
|
|
SEPDISP88
Middle display
|
|
SEPDISP91DX
Right-hand side display
|
| KIT |
|
SEPDISPKIT-91DX-91SX
Both sides displays kit
|
|
SEPDISPKIT-88-91DX-91SX
Sides + middle displays kit
|

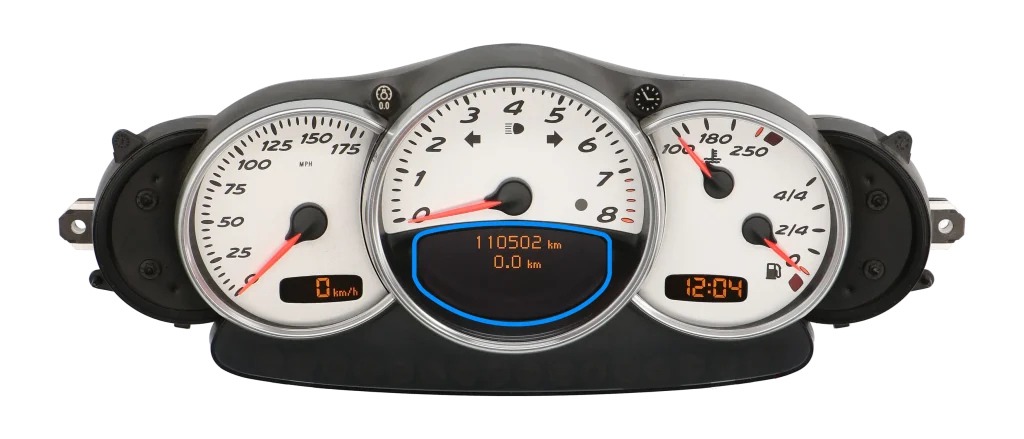

Versions from 2001 to 2004 (dot-matrix display)
Attention!
After replacing the display, you may need to optimise it by modifying the EEPROM parameters using a programmer
| SINGLE DISPLAY |
|---|
|
SEPDISP87
Middle display
|
