SEI-DISP237

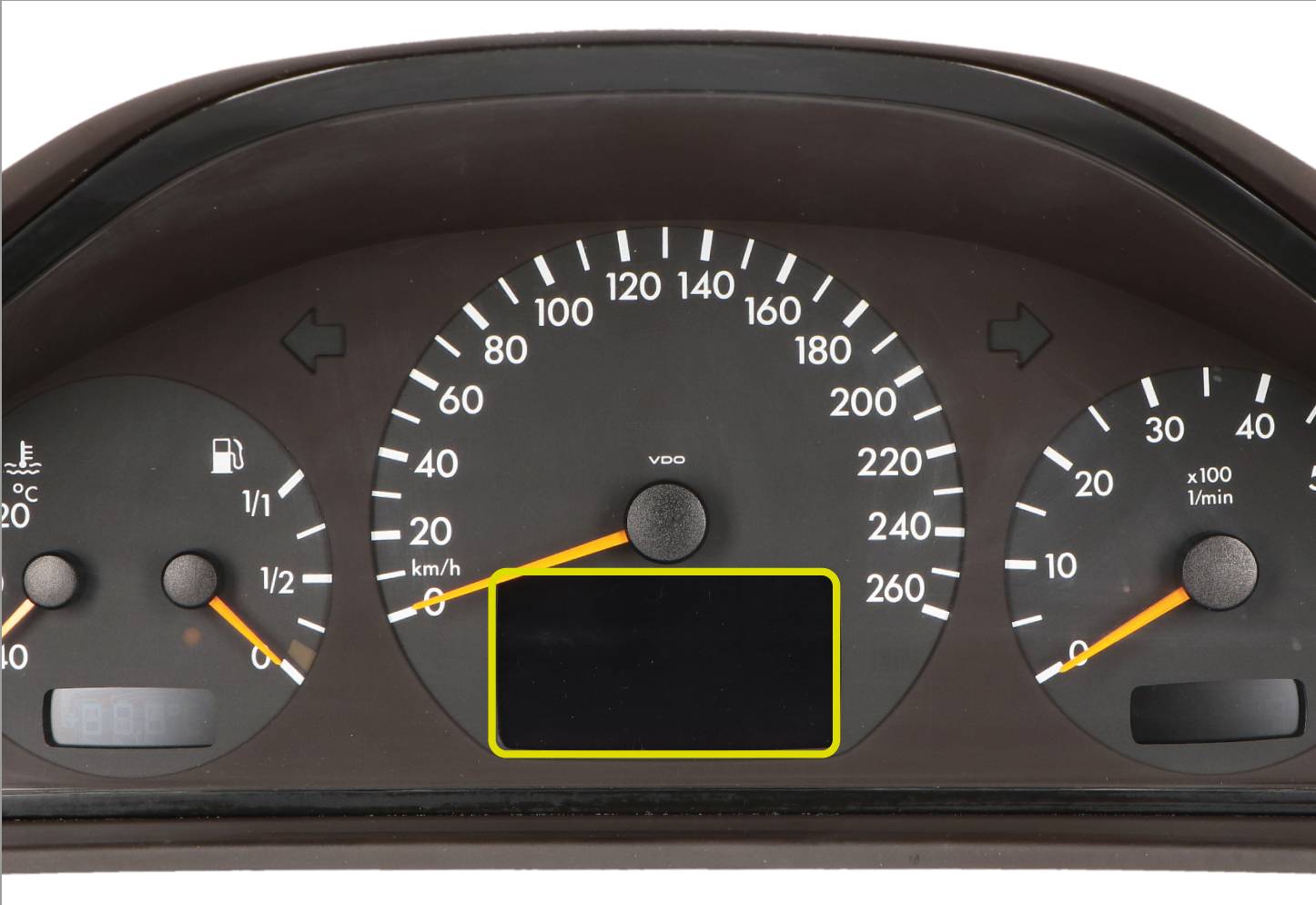

Mercedes W208, W210, W463 voltage measurement
Warning: it is necessary to measure and tell us the voltage as shown before purchasing

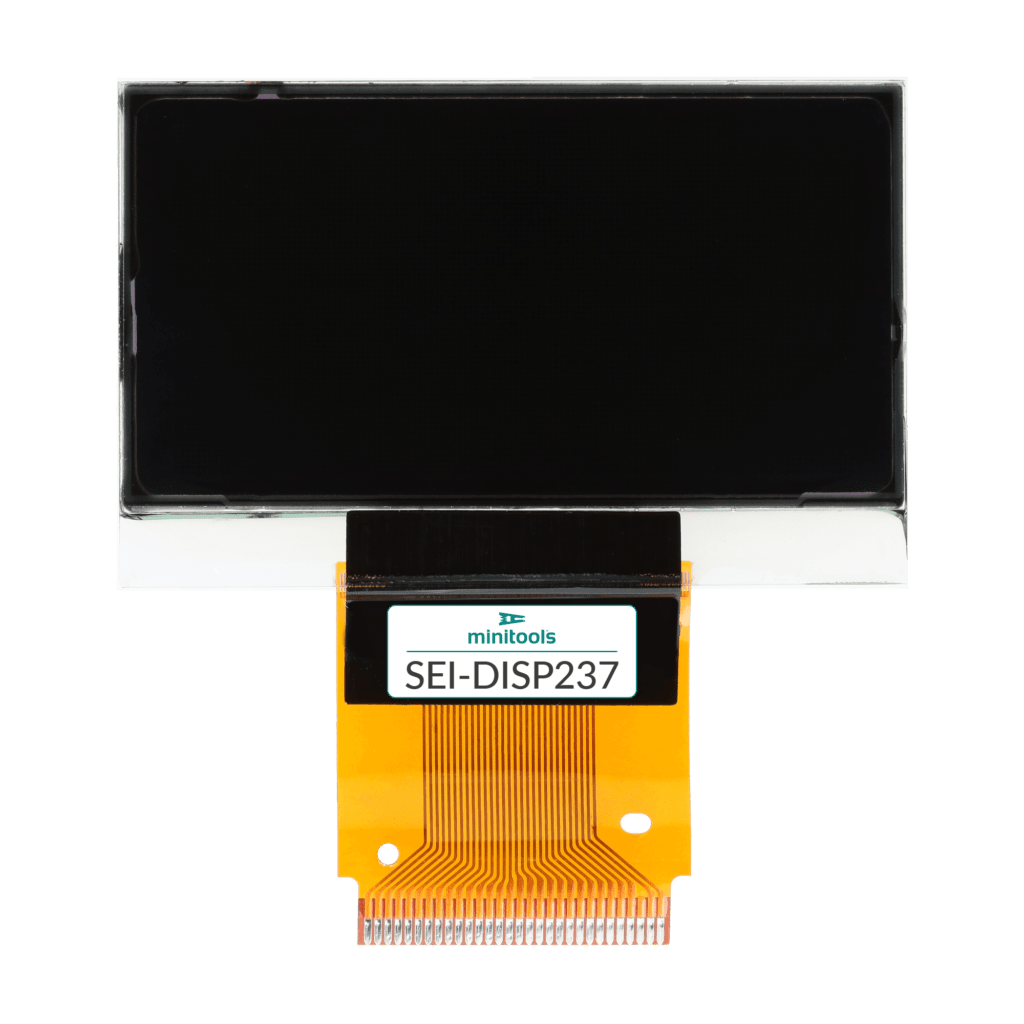

Before installing the new SEI-DISP237 display, please read the following instructions carefully.
DO NOT SKIP ANY STEPS.
TO MEASURE THE VOLTAGE
- remove the rear cover of the instrument cluster to reach the PCB;

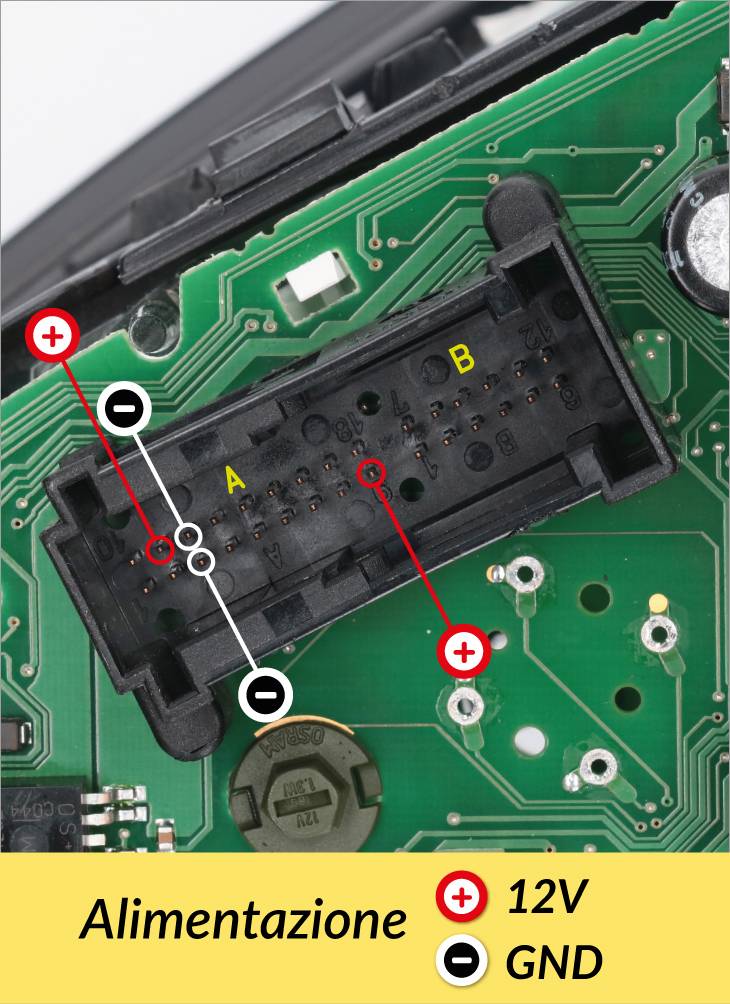

- switch on the dashboard (left connector -> Pin A03 and A12 negative, A09 and A11 positive) as in picture 2;

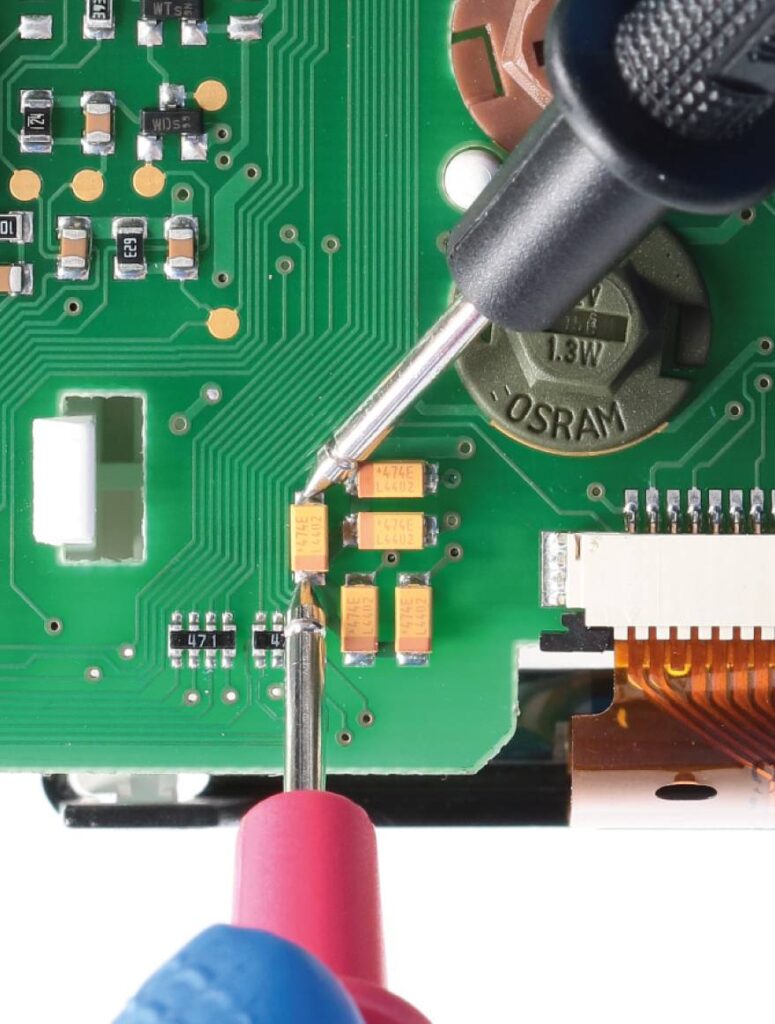

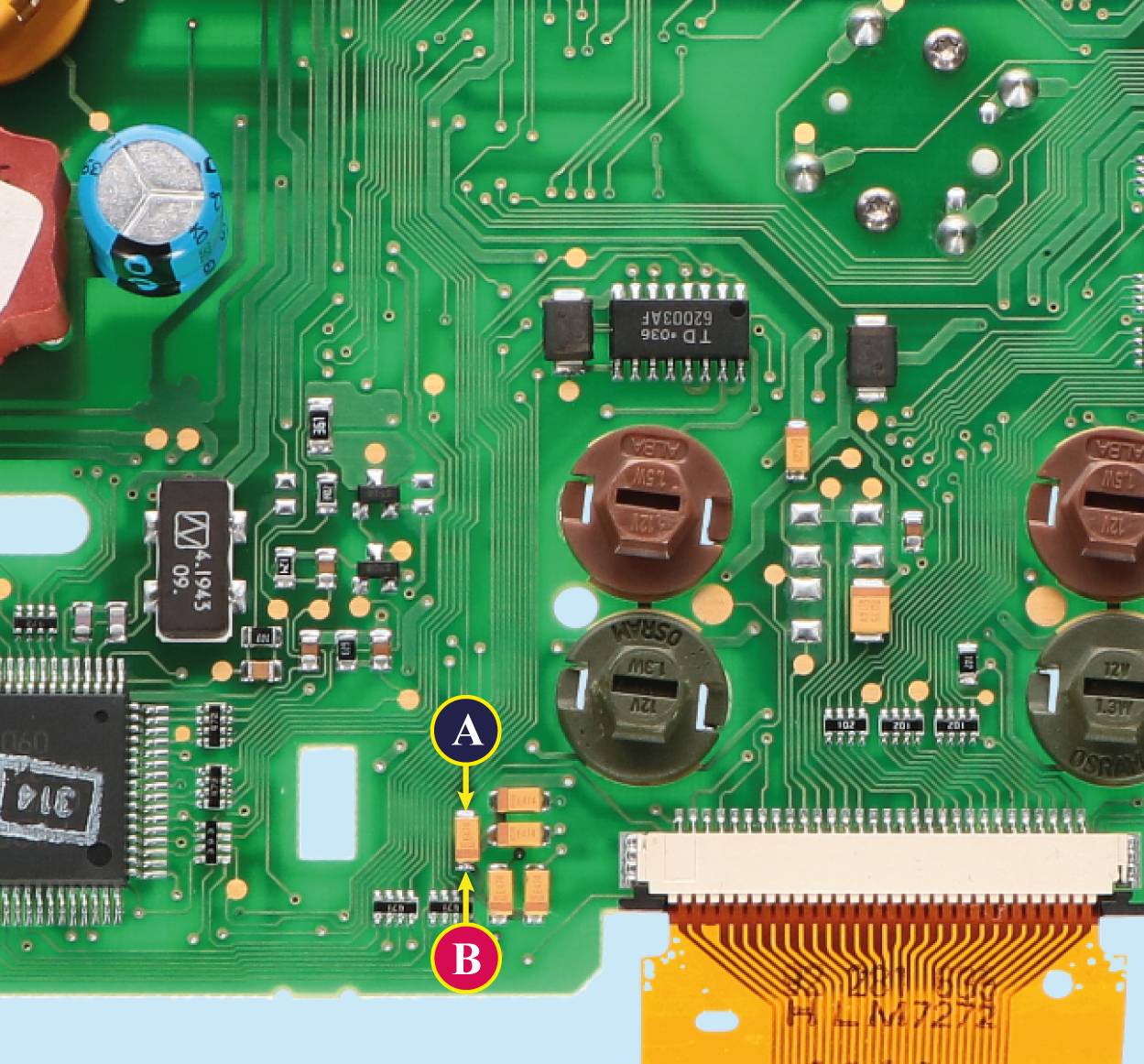

- measure the voltage between A and B points as shown in pictures 3 and 4;
- send us an e-mail at [email protected] with the voltage measured.
Voltage measurement
