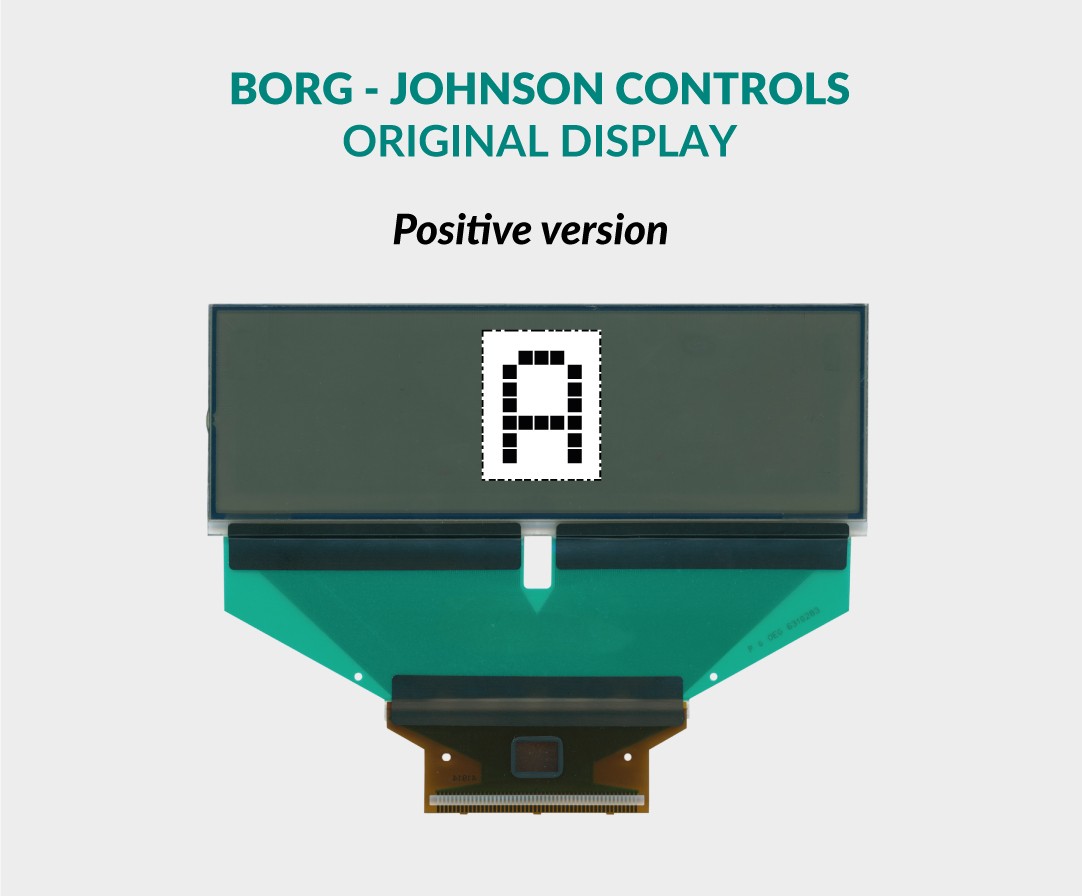

Positive version
SEPDISP29P
Installation instructions for Citroën, DS, Fiat, Lancia, Peugeot, Toyota BORG - JOHNSON CONTROLS MFD display
Before installing the new SEPDISP28P display, please read carefully the following instructions. Our technicians, for illustrative purposes only, have made a video tutorial about how to repair the module.
DON’T SKIP ANY STEP.
WARNING: THIS PROCESS IS RECOMMENDED ONLY TO EXPERT AND QUALIFIED STAFF

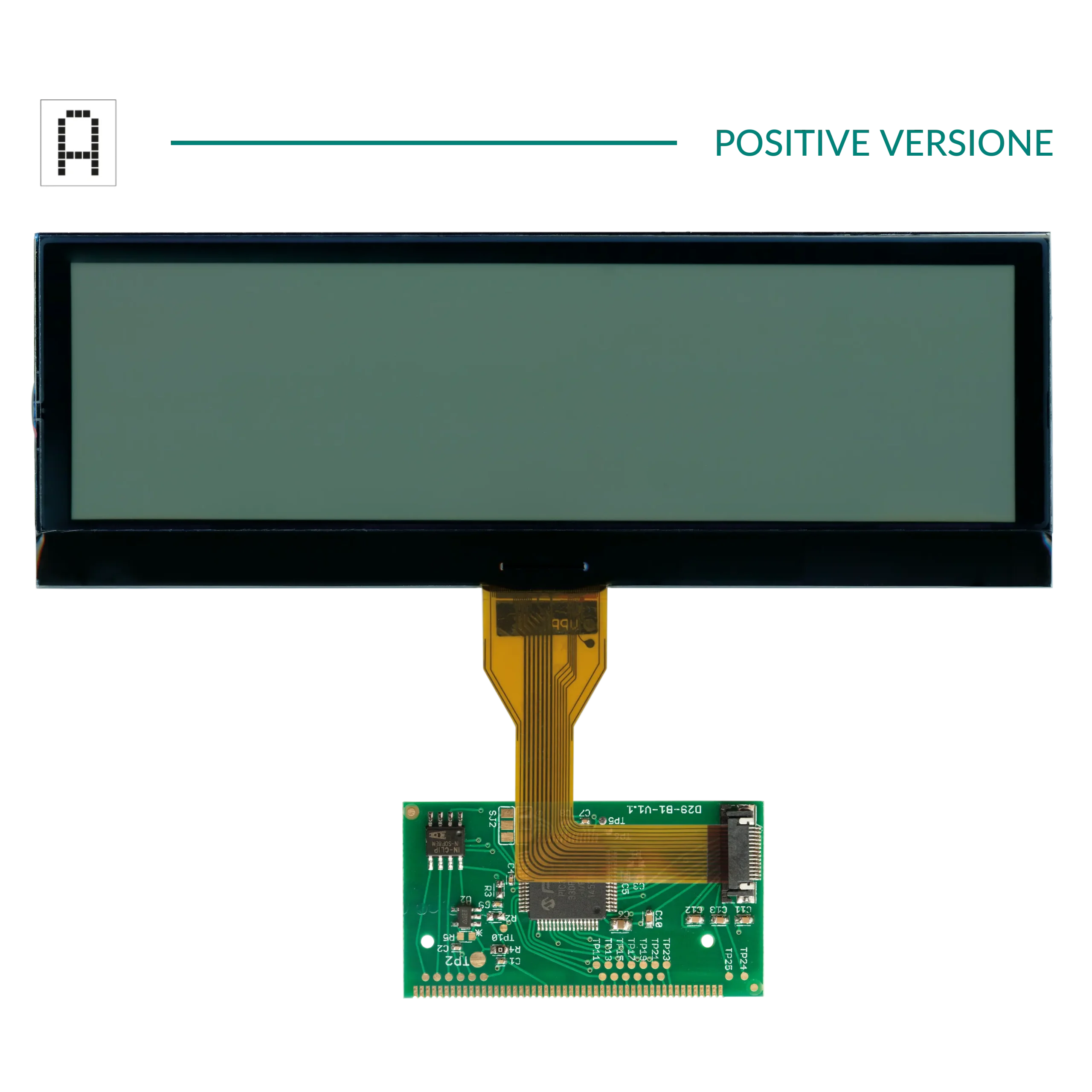

- The display must be installed only with its related small PCB, as supplied in the original packaging;
- Before installing the new display SEPDISP29P, it is highly recommended to carefully read the following instructions and watch the video below.
The video is for illustrative purpose only; - Do not skip any steps.
1

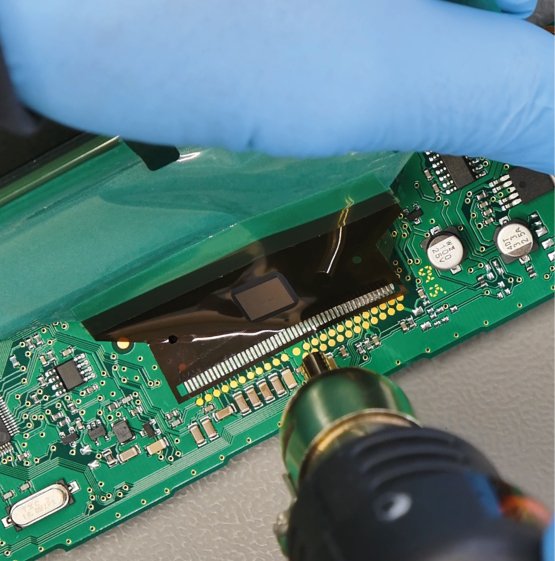

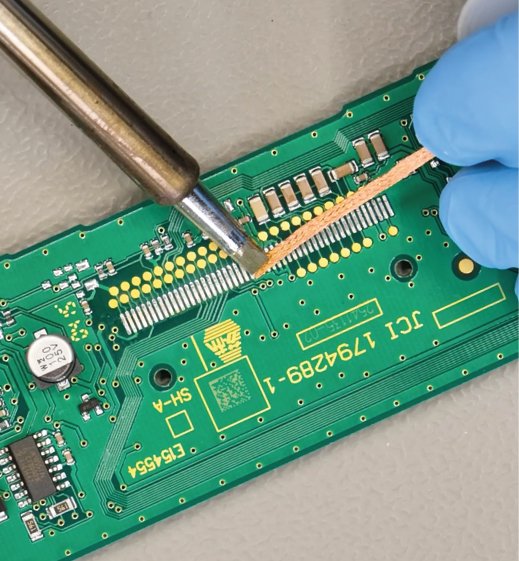

De-solder the original display with a hot air de-soldering iron (Pic. 1). Clean with a solder wick and chisel tip to remove any excess tin (Pic. 2). A moderate amount of flux may be used to facilitate the cleaning process. Lastly, complete the cleaning with some solvent.
2

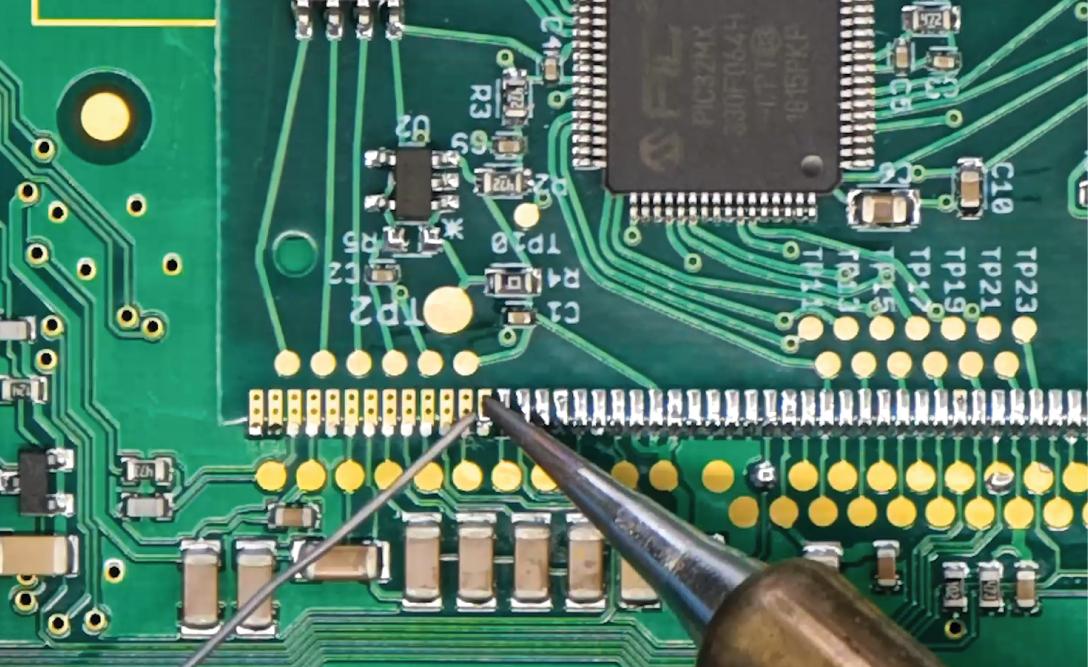

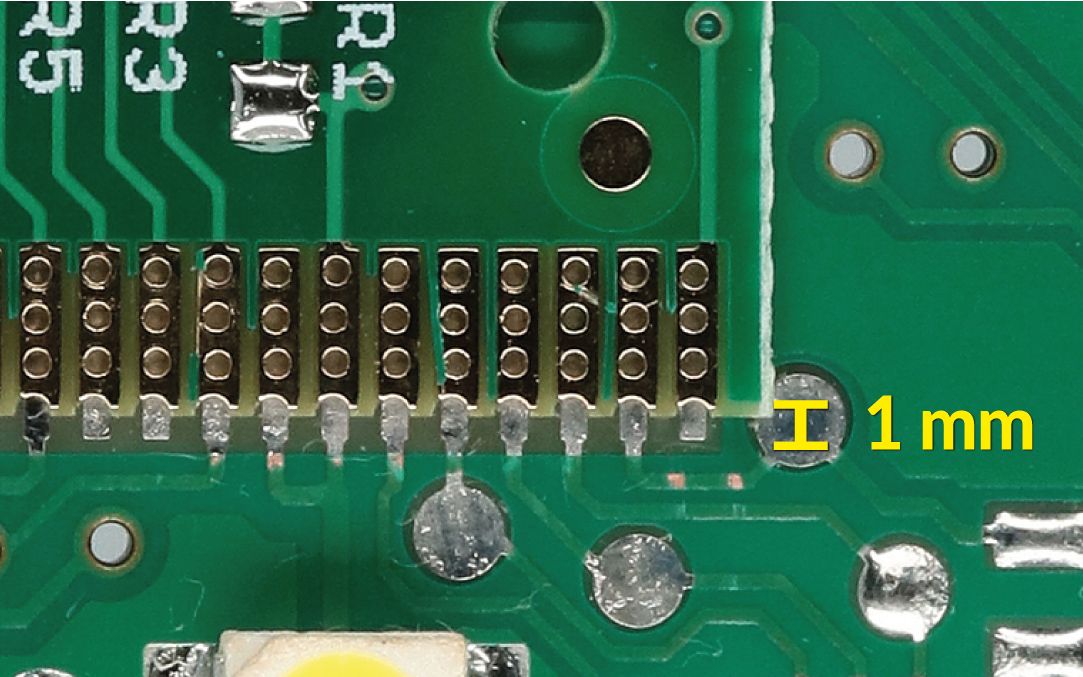

Position the small PCB leaving 1mm gap, as in picture 3, and solder each pin individually, one at the time, with 0,3mm thin solder wire and with
conical tip at 350°C (Pic.4). In this case, using flux is not recommended to inexperienced staff as misusing it may damage the board irreversibly
3

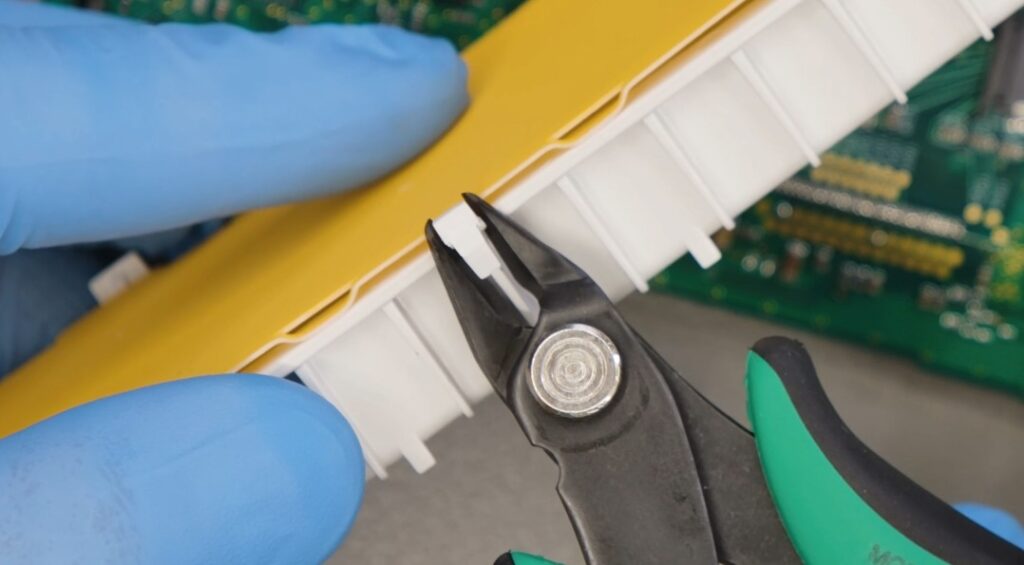

With a flush cutter, cut off the central clip of the plastic base of the display and any other plastic part positioned by the new FPC, as it may damage it when re-assembling.
4

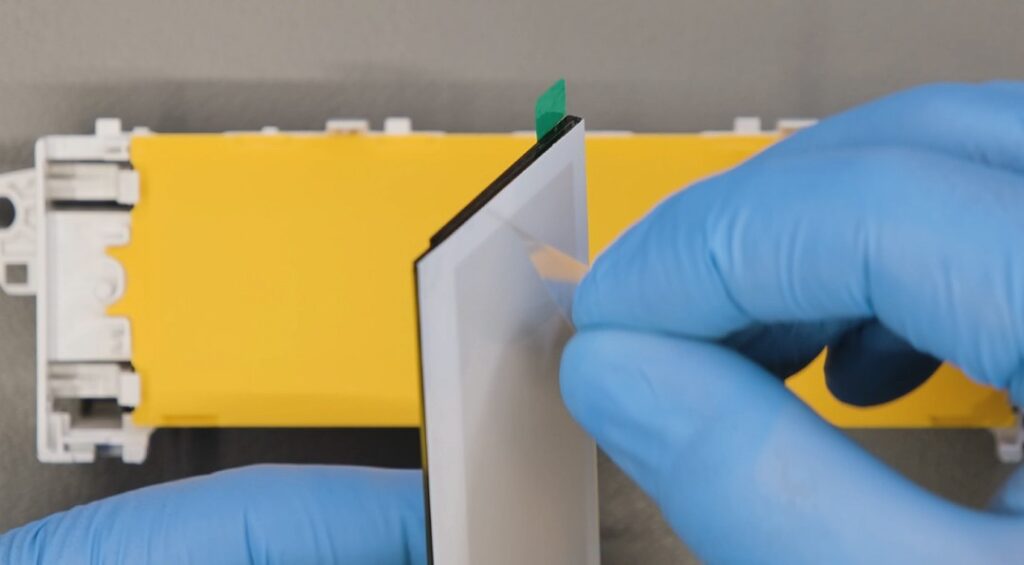

Peel off the rear protective film from the display.
5

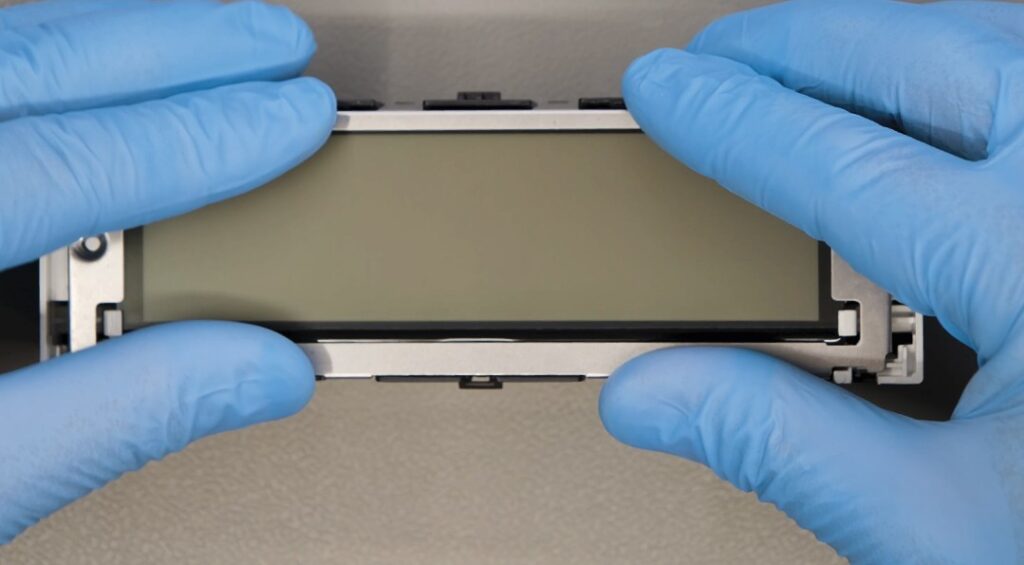

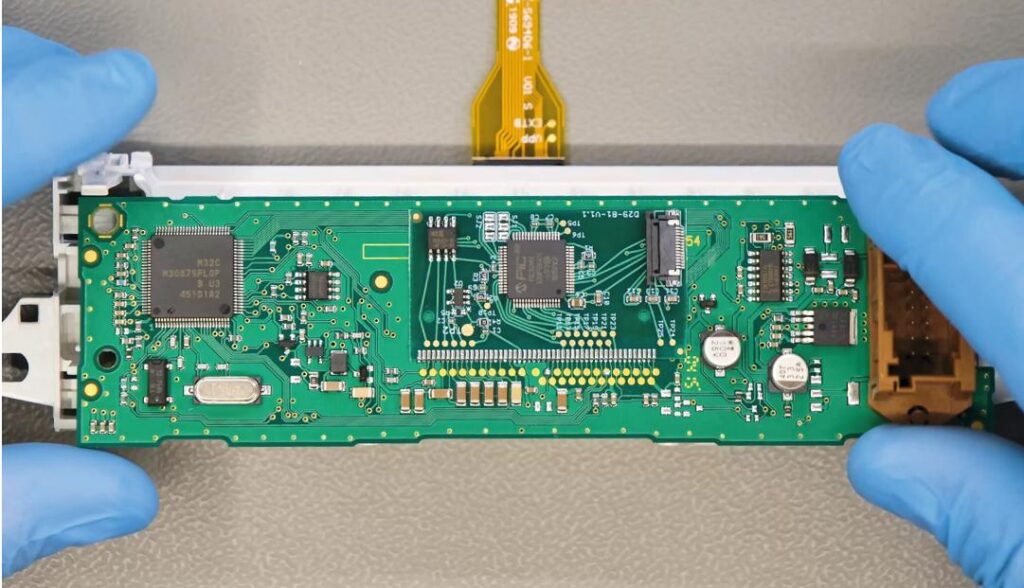

Fit the display in its housing and re-attach the board on the rear.
6

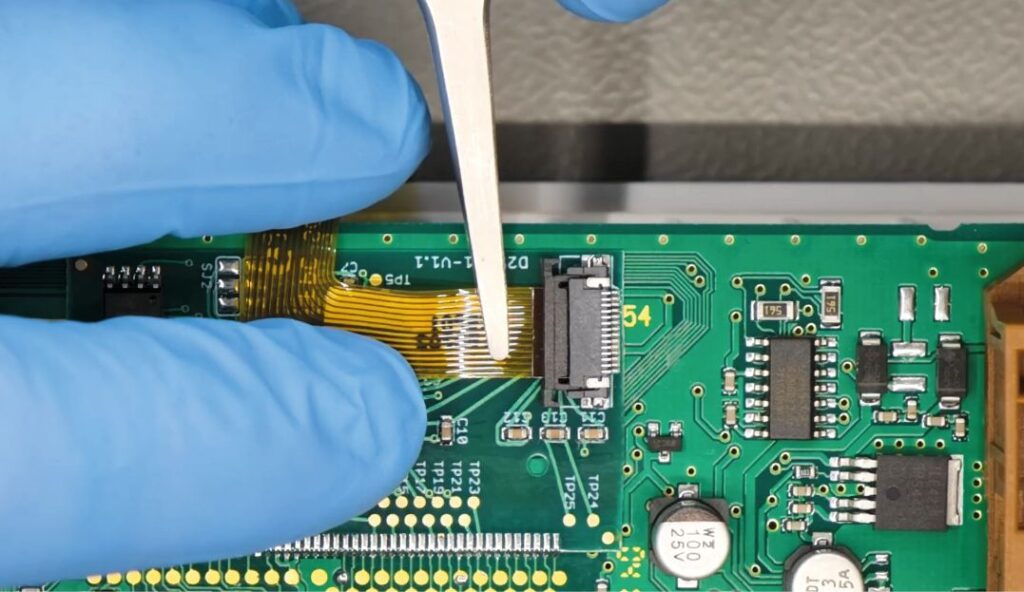

With the aid of the tweezers, insert the FPC of the new display, with
contacts facing down, into the connector on the small PCB.
7

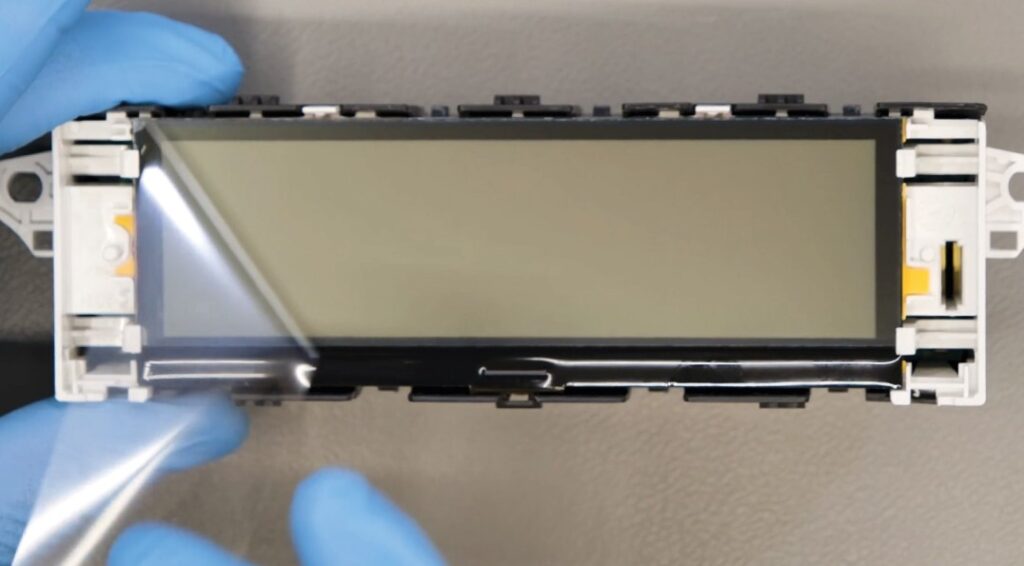

Put back the module in the rear cover, making sure not to damage the
FPC. Then, peel off the front film.
8
Lastly, re-attach the metal frame.
9

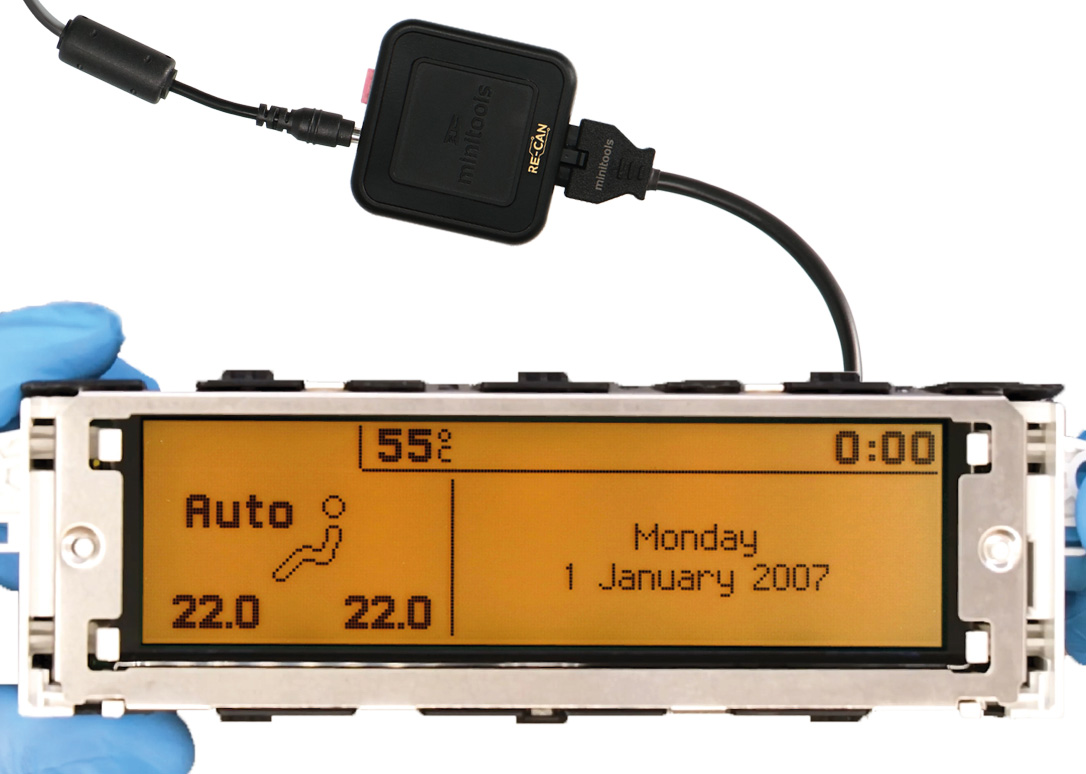

Switch on the module on a test bench using the Minitools CAN BUS generator SEP-RE-CAN008I, or directly on the vehicle.
NOTE:
If the display won’t turn on, please double check the soldering points. If the problem persists even after those checks, please send a picture of the small PCB soldered on the board at [email protected].
Minitools technicians will support you to complete the repair.
